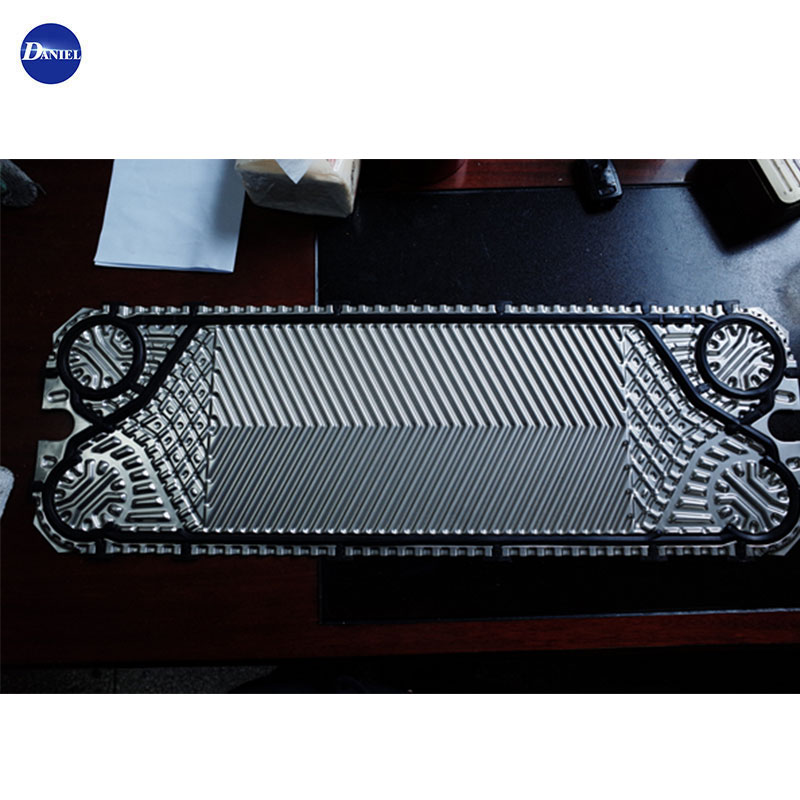

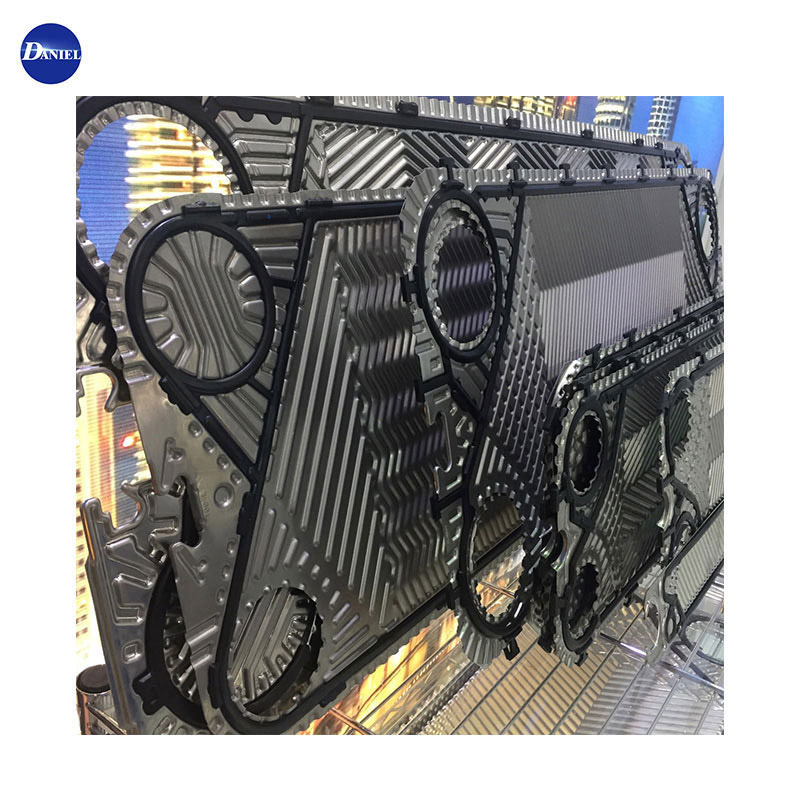

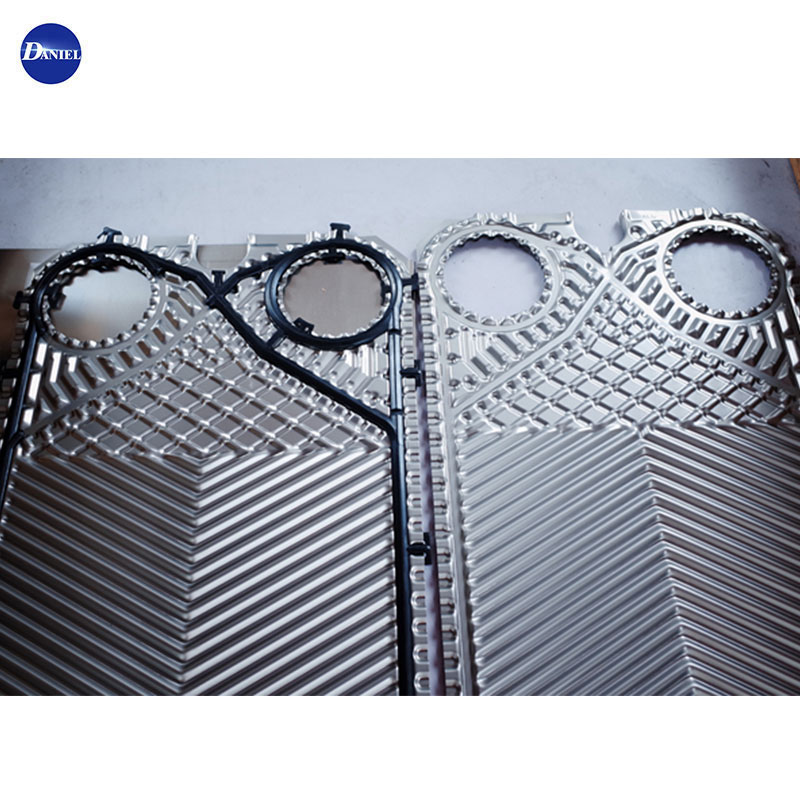

Replace SONDEX S20/S21/S21A/S22/S23 Plate Heat Exchanger Plate

Replace SONDEX S20/S21/S21A/S22/S23 Plate Heat Exchanger Plate

Sealing type: clip on, snap in, hang on, glue on.

Sealing material: NBR, EPDM, HNBR, FPM, VG

Material  of  PlateSuited  Liquid  Kinds

Stainless  Steel  (SUS304.   316  Etc)Pure  Water,   Normal  Water,   Oil  for  eating,   Mineral  Oil

Ti,   Ti-pdSea  Water,   Saline  Water,   Mineral  Water

20Cr,   18Ni,   6Mo  (254SMO)Dilute  Sulphuric  Acid,   Organic  Water  Solution

NiHigh-temp  and  concentration  caustic  soda

Hastelloy  (C276,   D205,   B2G)Concentration  Sulphuric  Acid,   Hydrochloric  acid,   Phosphoric  acid

Material  of  GasketOperating  Temperature  RangeSuited  Liquid  Kinds

NBR-15~+135°CWater,   Sea  Water,   Mineral  Oil,   Salty  Water

EPDM-25~+180°CHot  Water,   Steam,   Acid,   Caustic

FPM-55~+160°CAcid,   Caustic,   Fluid

VG0~+180°CConcentrated  Acid,   Caustic,   High-temperature  Oil,   Steam

Application areas：
HVAC: Provide heating for offices , factories , residential buildings , hotels , restaurants , heating and water supply , heating and cooling for air-conditioning systems.

Iron and steel industry: mold cooling , continuous casting machine cooling , hydraulic oil cooling , emulsion cooling , furnace water cooling.

Surface treatment: electrolyte cooling , paint cooling , phosphating solution cooling.

Automobile industry: quenching oil cooling , paint cooling ,phosphate treatment liquid cooling.

Alcohol and corn deep processing: liquefaction cooling , saccharification cooling , fermentation cooling , wine mother cooling , methanol cooling , fusel oil cooling , crude wine preheating , and miscellaneous wine preheating.

Petroleum and petrochemical: heating and cooling of various oil products , large-scale desalinated water cooling device.

Power nuclear power: closed circulating water , nuclear island cooling of nuclear power plant , auxiliary water supply system , vacuum pump cooling of unit.

Coal chemical industry: coal gas cooling , lean and rich oil cooling , ammonia water cooling , waste water cooling , desulfurization liquid cooling , desalted water cooling , crude methanol preheating , benzene vapor condensation , ammonia-rich water condensation , heating water addition , boiler feed water preheating.

Promise chemical industry: various liquid medicines , pure water heating , cooling , evaporation , condensation and sterilization.

Organic chemical industry: various inorganic acids , alkali , salt heating , evaporation , condensation , sulfuric acid cooling , heating of various concentrations of lye and electrolyte , heat recovery device for desalination process.

Pharmaceutical hygiene: emulsion cooling , plasma cooling , infusion cooling , antibiotic cooling , starch liquid cooling.

Food industry: raw juice heating , jam heating ,milk pasteurization and cooling ,carbonated juice heating ,a variety of wine heating and cooling.

Marine and engines: central cooling ,lubricating oil cooling ,piston coolant cooling ,transmission oil cooling ,heavy fuel oil preheating , diesel preheating ,sea water heating ,offshore and offshore central cooling ,lubricating oil cooling ,lower tank heating.

Metallurgical industry: blast furnace ,continuous casting ,closed circulating water cooling , various lubricating oil and emulsion cooling ,transmission oil cooling.

Water treatment and desalination: membrane system application , water microbial treatment ,water purification ,clean and recycled use.


FAQ
Q : Can I have a sample order?
A : Yes , we welcome sample order to test and check quality.Mixed samples are acceptable.

Q : What is the lead time?
A : Sample needs 1-3 days , mass production needs 7-15days , also according to the order volume.

Q : Can you accept mixed batch of different products?
A : Yes , we are support different product mix wholesale.

Q : How do you ship the goods and how long does it take arrive?
A : For sample order , we usually ship by DHL , UPS , FedEx or TNT.It usually takes 3-5 days to arrive.

Q : Can you provide container packed in wooden cases if I order more products?
A : Yes , we are can provide a set of wooden packaging products , but only in big quantity.

Q : We want to visit your company?
A : No problem , we are a production and processing enterprises , look forward to your arrival and we will lead you to visit our factory and processing factory.
