Plate heat exchanger gasket s20a nbr material on sale

Plate heat exchanger gasket s20a nbr material on sale: Provide heating for offices, factories, residential buildings, hotels, restaurants, heating and water supply, heating and cooling for air-conditioning systems.

Send Inquiry

Product Description

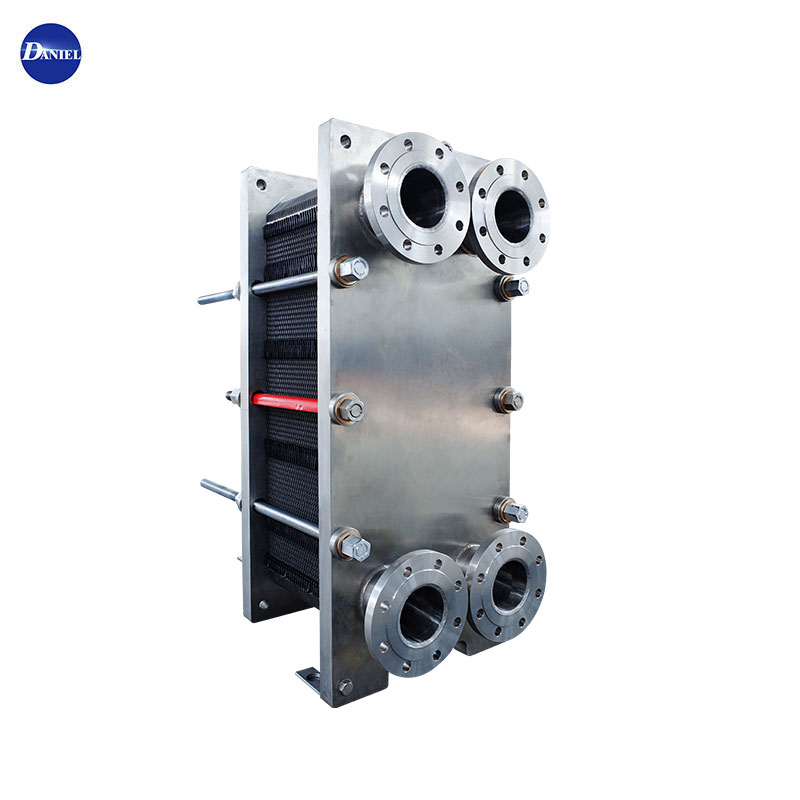

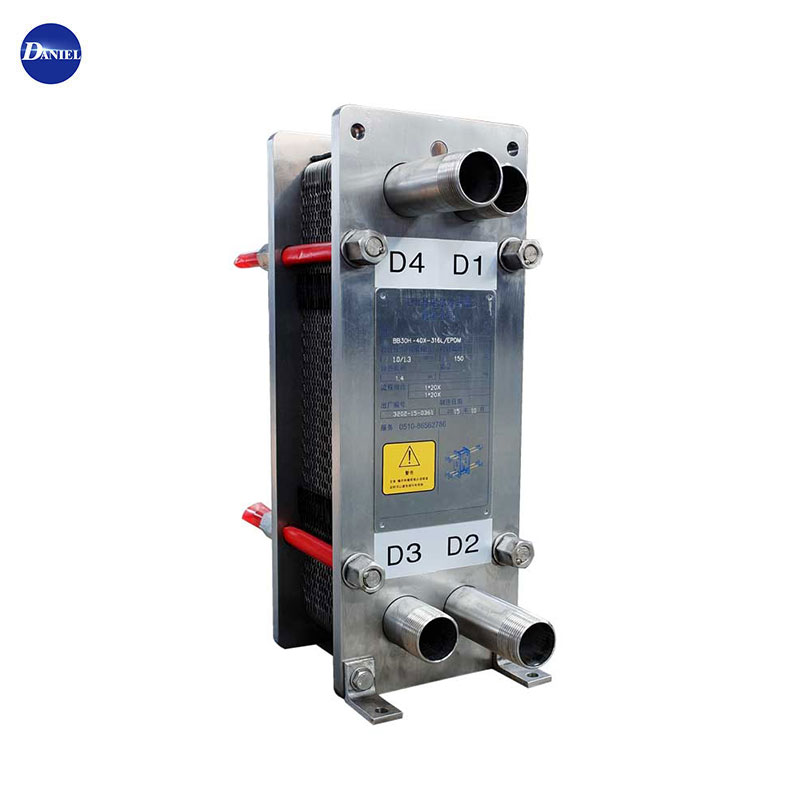

Plate heat exchanger gasket s20a nbr material on sale

Model	BH30	BH60B/BH60H		SH60H	LB100B
Cross Reference ALFA LAVAL	M3	M6, M6M		TS6M	TLlOB
Height, H [mm]	480	920	940	704	1885
Width, W [mm]	180	320	330	400	480
Minstandardlength, L [mm]	400	500	500	530	850
Max standard length, L [mm]	650	1500	1500	1430	2350
Verticalportdisance, VC [mm]	357	640	640	380	1338
Horizontal portdistance, HC [mm]	60	140	140	203	225
Max temperature[℃]	180	180	180	180	160
Max pressure [barg]	16	10	16	16	10
Flange size Pipe	Pipe 1 1/4"	DN50/2"	DN50/2"	DN65/2"	DN100/4"
Max. Flow rate [kg/s]	4	16		20	50
Model	BH100B/BH100H		BH150B/BH150H		BH200H
Cross Reference ALFA LAVAL	MlOM, M10B		M15M, M15B		M20M,T20M,T20B
HeigHt. H [mm]	1084	1084	1885	1885	2150
Width, W [mm]	470	470	610	650	750
Min standard length,L [mm]	700	700	1150	1150	1250
Max standard length,L [mm]	2300	2300	2050	3250	3350
Venical portdistance,VC[mm]	719	719	1294	1294	1478
Horizontal port distance, HC [mm]	225	225	298	298	353
Max temparature [℃]	180	180	180	180	180
Max pressure [barg]	10	16	10	16	42659
Flange size	DN100/4"	DN100/4"	DN150/6"	DN150/6"	DN200/8"
Max. flow rate [kg/s]	50		80		225
Model	SH200B	BH250	BH300H
Cross Reference ALFA LAVAL	TS20M	MX25B	M30
HeigHt. H [mm]	1405	2595	2920
Width, W [mm]	740	920	1190
Min standard length,L [mm]	900	1550	1650
Max standard length,L [mm]	2700	3350	5200
Venical portdistance,VC[mm]	698	1939	1842
Horizontal port distance, HC [mm]	363	439	596
Max temparature	180	180	180
Max pressure [barg]	42659	42659	42659
Flange size	DN200/8"	DN200/DN250/8"/10"	DN300/DN350/12"/14"
Max. flow rate [kg/s]	190	250	250	497

Application areas：
HVAC: Provide heating for offices , factories , residential buildings , hotels , restaurants , heating and water supply , heating and cooling for air-conditioning systems.

Iron and steel industry: mold cooling , continuous casting machine cooling , hydraulic oil cooling , emulsion cooling , furnace water cooling.

Surface treatment: electrolyte cooling , paint cooling , phosphating solution cooling.

Automobile industry: quenching oil cooling , paint cooling ,phosphate treatment liquid cooling.

Alcohol and corn deep processing: liquefaction cooling , saccharification cooling , fermentation cooling , wine mother cooling , methanol cooling , fusel oil cooling , crude wine preheating , and miscellaneous wine preheating.

Petroleum and petrochemical: heating and cooling of various oil products , large-scale desalinated water cooling device.

Power nuclear power: closed circulating water , nuclear island cooling of nuclear power plant , auxiliary water supply system , vacuum pump cooling of unit.

Coal chemical industry: coal gas cooling , lean and rich oil cooling , ammonia water cooling , waste water cooling , desulfurization liquid cooling , desalted water cooling , crude methanol preheating , benzene vapor condensation , ammonia-rich water condensation , heating water addition , boiler feed water preheating.

Promise chemical industry: various liquid medicines , pure water heating , cooling , evaporation , condensation and sterilization.

Organic chemical industry: various inorganic acids , alkali , salt heating , evaporation , condensation , sulfuric acid cooling , heating of various concentrations of lye and electrolyte , heat recovery device for desalination process.

Pharmaceutical hygiene: emulsion cooling , plasma cooling , infusion cooling , antibiotic cooling , starch liquid cooling.

Food industry: raw juice heating , jam heating ,milk pasteurization and cooling ,carbonated juice heating ,a variety of wine heating and cooling.

Marine and engines: central cooling ,lubricating oil cooling ,piston coolant cooling ,transmission oil cooling ,heavy fuel oil preheating , diesel preheating ,sea water heating ,offshore and offshore central cooling ,lubricating oil cooling ,lower tank heating.

Metallurgical industry: blast furnace ,continuous casting ,closed circulating water cooling , various lubricating oil and emulsion cooling ,transmission oil cooling.

Water treatment and desalination: membrane system application , water microbial treatment ,water purification ,clean and recycled use.
